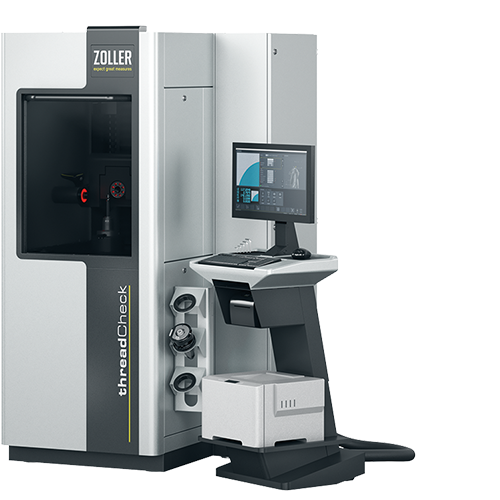

threadCheck | ZOLLER

High-precision
Six CNC-axes and swiveling multisensor optic carrier »orthoScan« for fully automatic, distortion-free measuring of helical cutting tools
Extensive
Large selection of photorealistic and modular measuring programs, including specific thread measuring programs
Reliable
Tailored software modules and interfaces for seamless processes
Simple
Complex measuring processes implemented easily operable
Appropriate for the shop floor
Use in production environment thanks to functional design and full enclosure

threadCheck orthoScan swiveling multisensor optics carrier ZOLLER

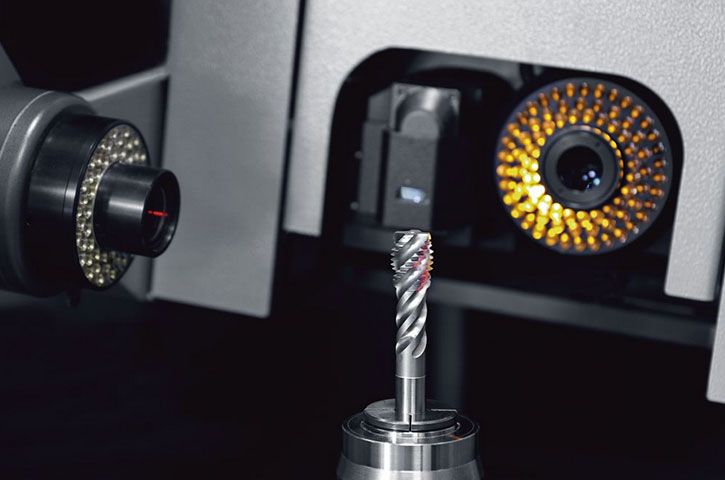

Swiveling multisensor optic carrier »orthoScan«

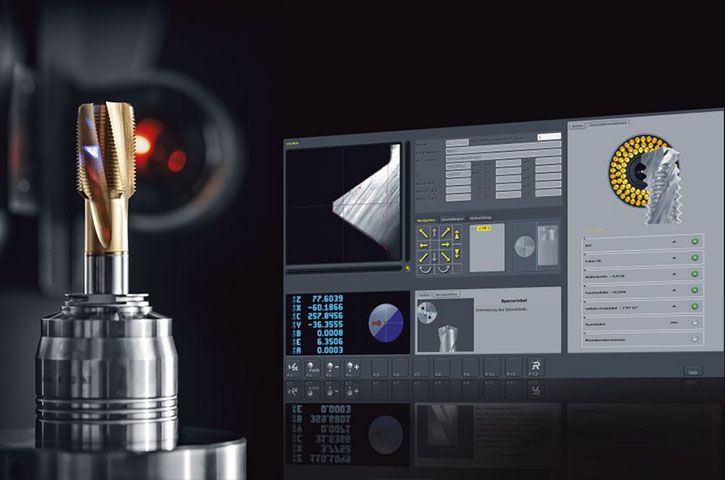

threadCheck Measurement incident light thread milling cutter Screenshot ZOLLER

Easy-to-use measuring of complex tools

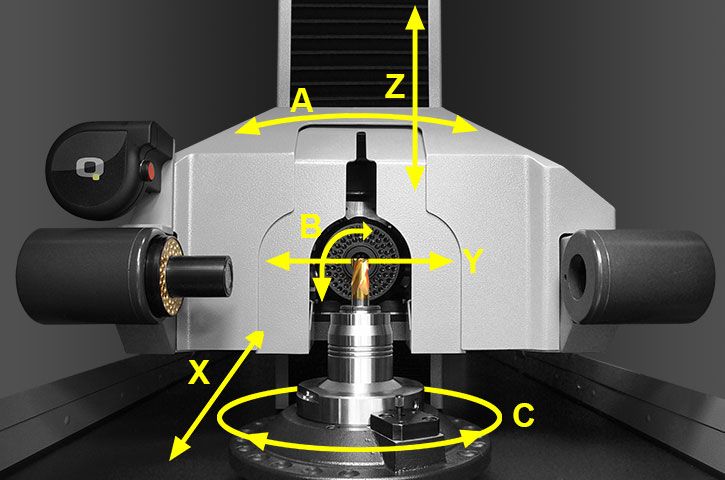

The machine has six CNC-controlled axes

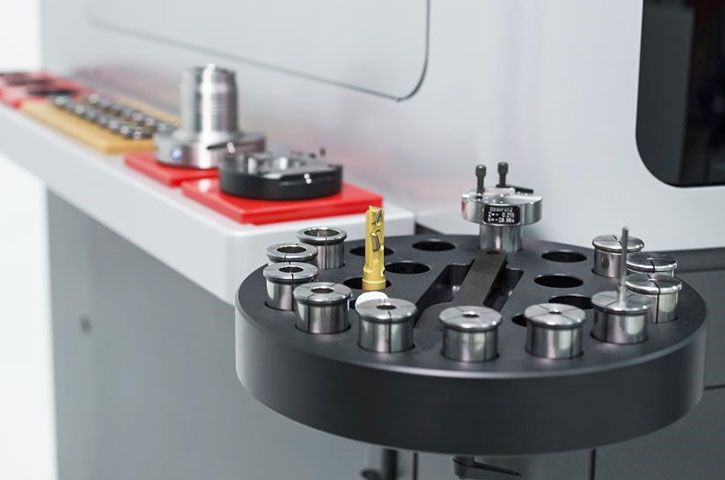

threadCheck Ablageboard measuring ZOLLER

Storage board

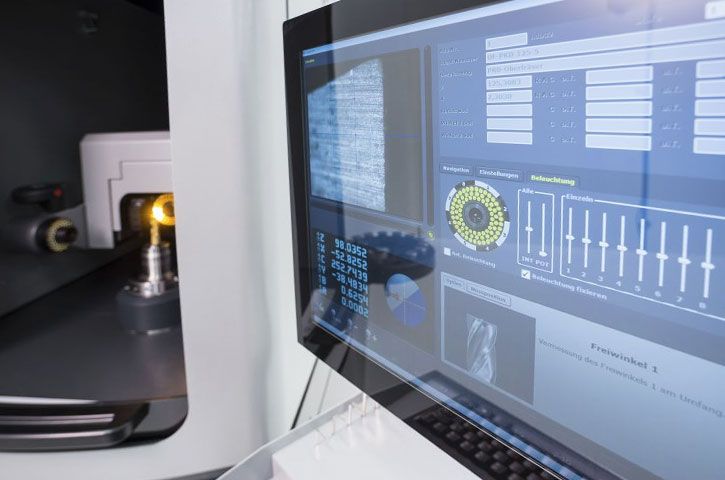

threadCheck image processing measuring ZOLLER

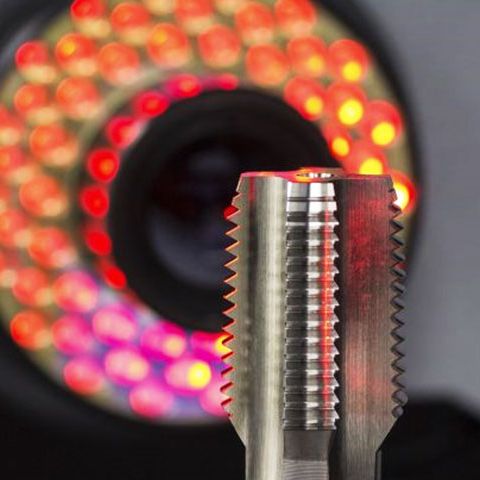

Optional manual intervention in the incident light controls

Modern design and even more features: The software for all-inclusive tool measurement

»pilot 4.0«

Graphic rich, self-explanatory user interface
All features are easily accessable
Large click and touch areas
Photorealistic input interface
Dynamic crosshairs
Self-explanatory function keys
Automatic cutting edge shape recognition
Automatic zero point monitoring
Clear and precise cutting edge display and inspection
Tool and adapter management
Tool identification
Test report output
Data transfer to the machine tool and interfaces to external systems

and many other functions and options

more

	Max. tool length	Max. tool Ø (with / without swivel mechanism)	Max.snap gauge Ø	Number of axes	Weight
»threadCheck«	600 mm (23.6 inch	260 mm (10.24 inch) / –	100 mm (3.94 inch)	6	820 kg (1 808 lbs)

Note: Using adapters and attachment holders can reduce the indicated measuring range in some circumstances.

Conical Reamers in Snap Gauge Method

Measuring program for the measurement of tapered reamers with the snap gauge method.

The Thread Professional, the Measuring Machine for Helical Cutting Tools

»threadCheck« is the ZOLLER high-end universal measuring machine for distortion-free and precise measuring of cutting tools, including special tooth-edge geometries.
Six CNC-controlled axes and the fully automatic, swiveling multisensor optic carrier »orthoScan« allow complex measurements of threaded tool geometries, threaded drills, milling cutters, molds and many other cutting tools Each highly complex measuring procedures are executed fully automatically: from quick inspection of individual parameters to the complete measuring of complex multi-stage tools. Precise and seamless inspection reports give you and your customers maximum security as well.
